Position:Home  >  Product Center  >  Hydrogen Test System  >  Fuel Cell Test System  >  C100 Series Fuel Cell Test System
for testing single cells

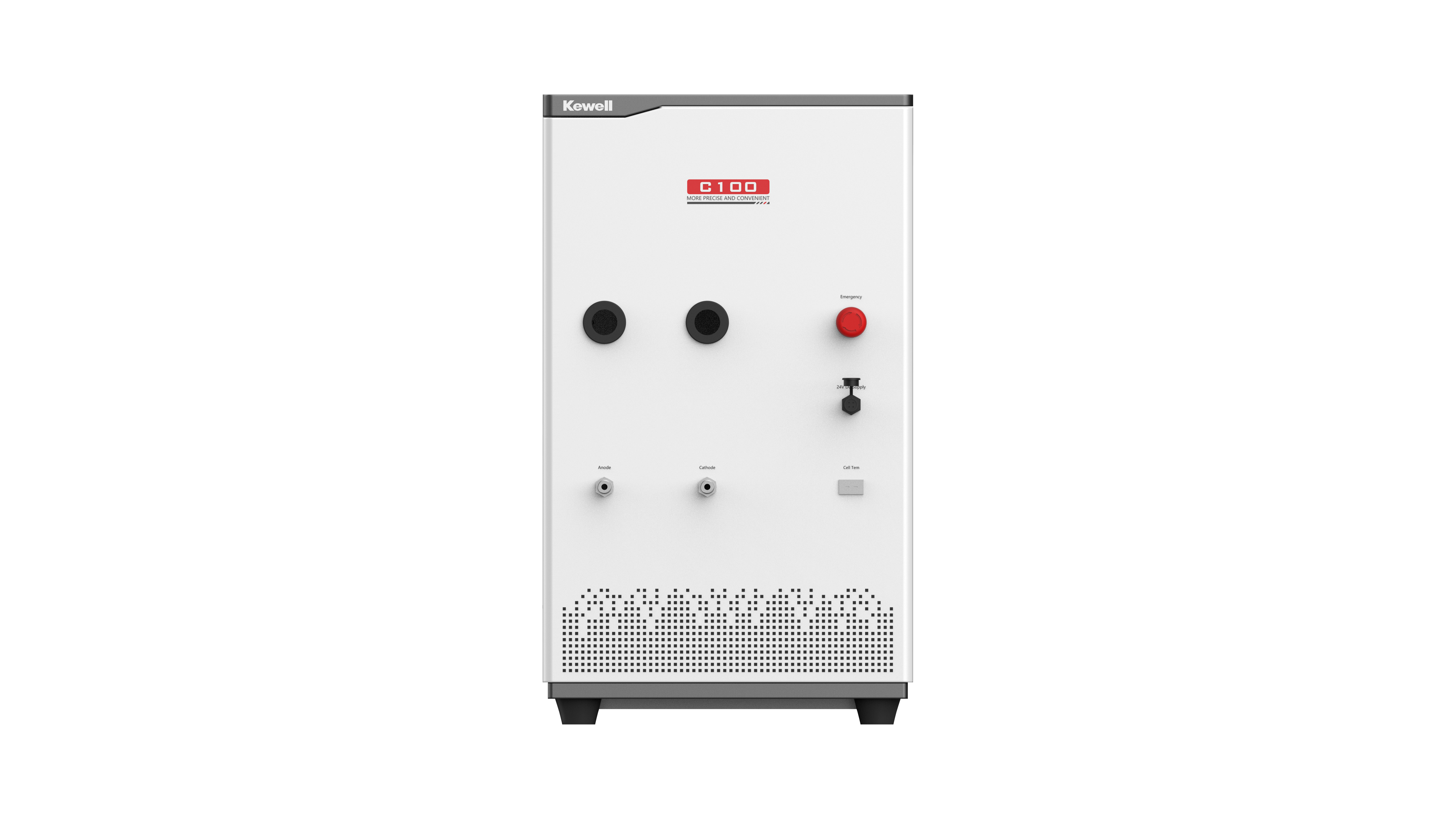

C100 Series Fuel Cell Test System
for testing single cells
PEM
Fuel Cell Test
100W
C100 Fuel Cell Test System aims to provide a high-precision, high-stability test platform for testing fuel cells and relevant materials. The system mainly consists of gas flow and pressure control unit, gas temperature and humidity regulation unit, measurement and control unit, safety protection unit, and the electronic load. Through integration of the dedicated software, it achieves functions such as online measurement, auto-scripting, multi-window graphical display, and automatic monitoring of various parameters. It is applicable to fuel cell material, component and single-cell testing by fuel cell material R&D enterprises, fuel cell manufacturers, universities, research institutes, and third-party organizations.

Catalog

Datasheet

User manual

Communication protocol

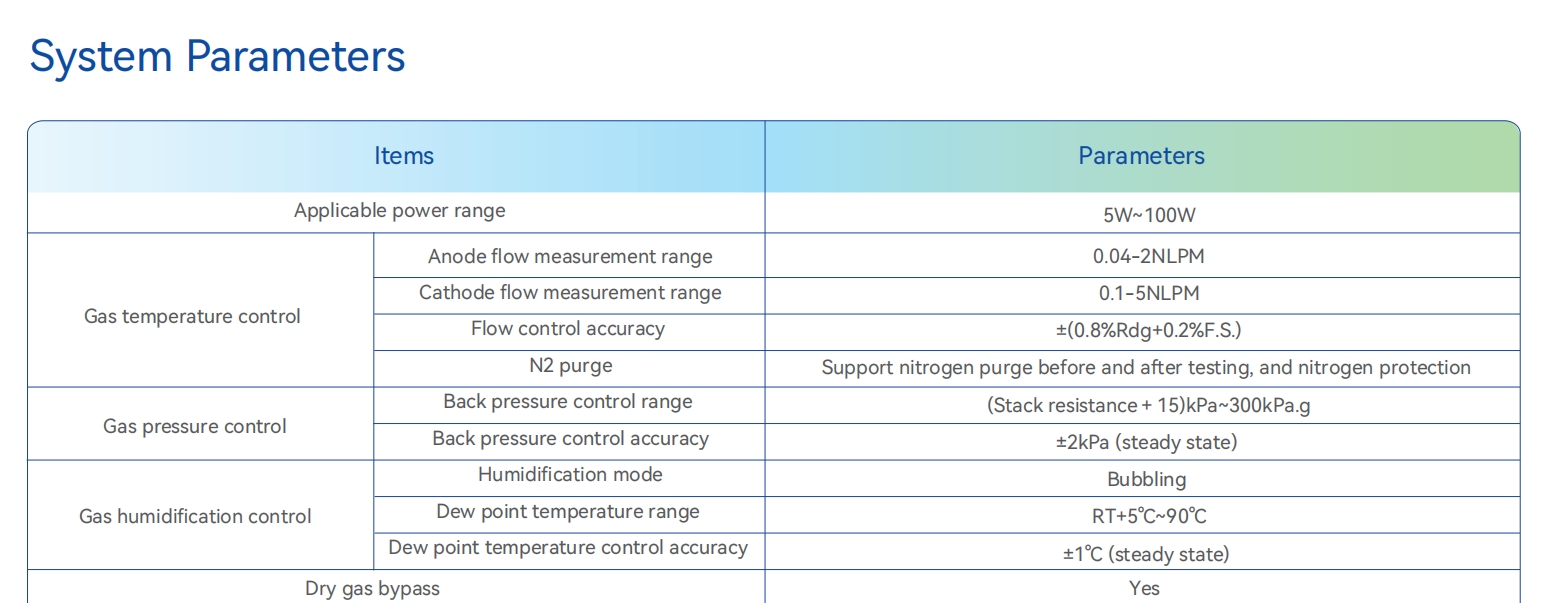

    • Automatic, wide-range and high accuracy control and acquisition of gas flow rate (0.8%Rdg+0.2%F.S.), temperature (RT+5~95℃, ±1°C), dew point (RT+5~90'℃, ±1℃), and pressure (15kPa~300kPa.g, ±2kPa).

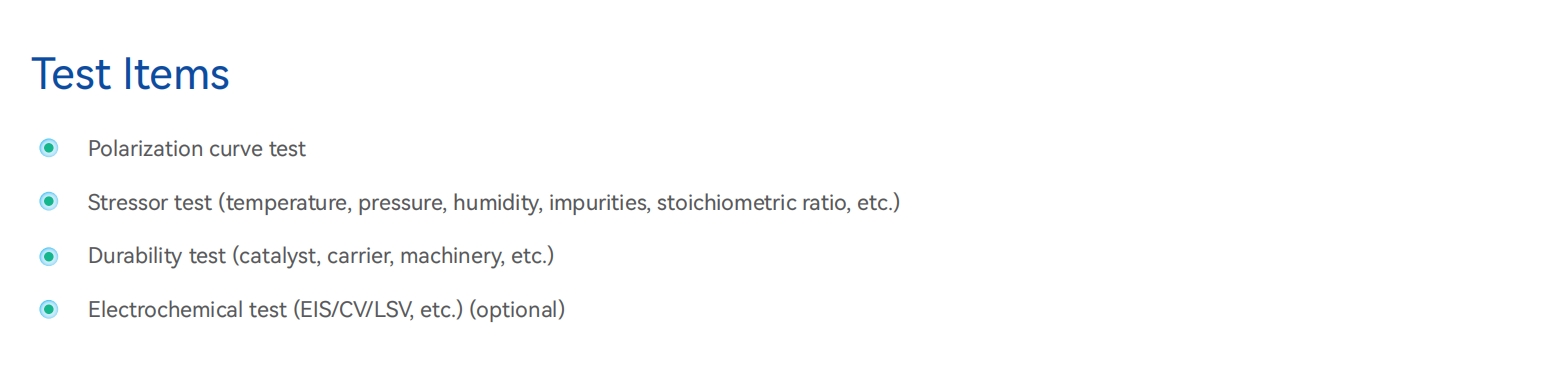

    • Support sensitivity, performance (polarization curve, power curve), durability and reversal tolerance test

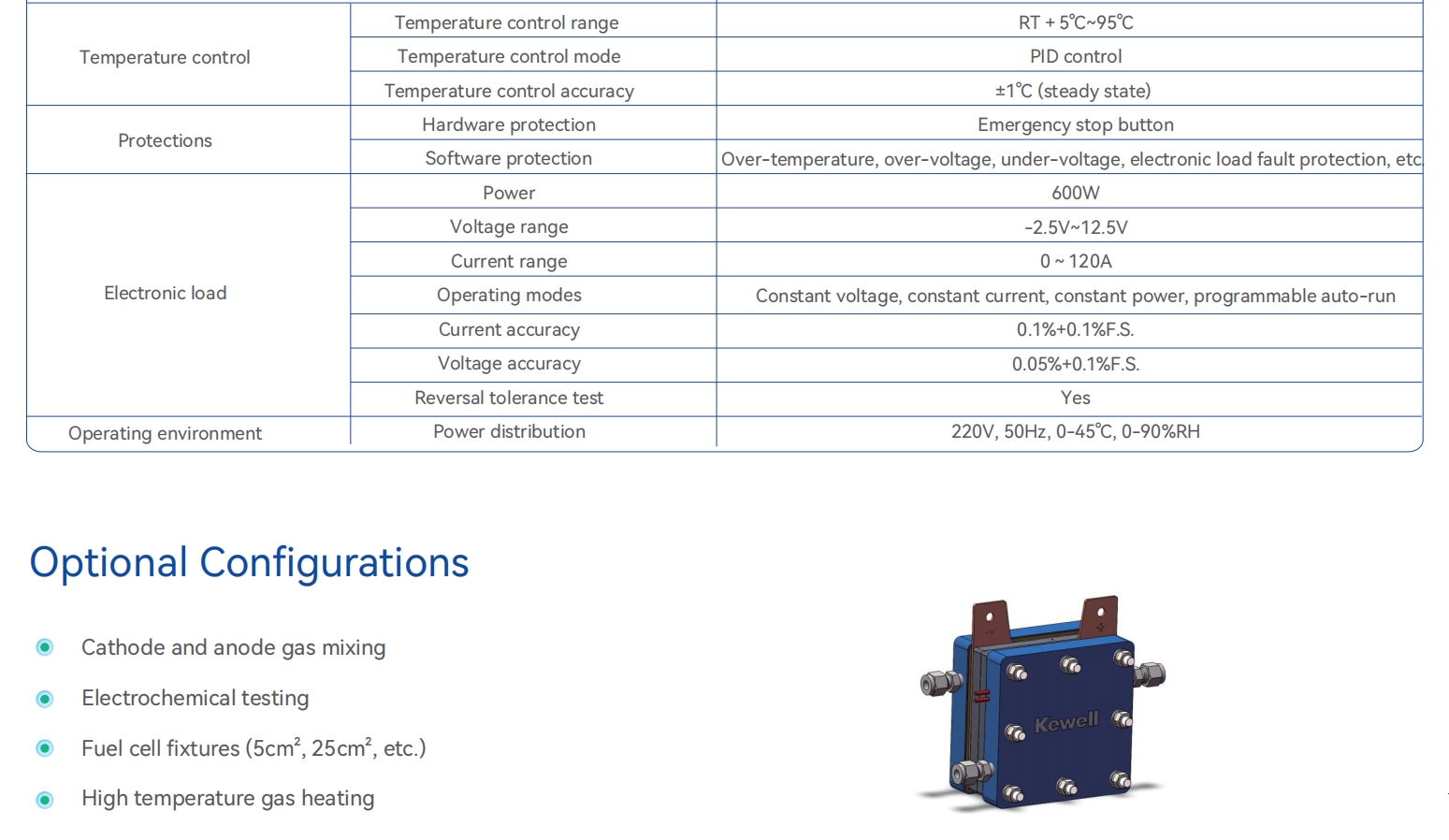

    • Reversal tolerance test, the electronic load can operate in Quadrant l and Quadrant IV, -2.5V @120A.
    • Simultaneous data logging with 8 loggers, multi-axis graphics, real-time tracking cursor (in curves only) and customizable script
    • Multi-specification dedicated test fixtures (5cm2, 25cm2, etc.)
    • EIS/CV/LSV and other tests
