KEWELL TECHNOLOGY CO.,LTD.

Fuel Cell Test Solutions

To better serve the R&D, EOL testing and third-party verification of fuel cells, and to ensure their efficiency, safety and service life, Kewell has launched testing solutions focused on the performance, reliability, durability of fuel cells.

Technical Advantages

Complete Product Portfolio

A whole product family covering fuel cell stacks, engines (systems), and H²/air/water sub-systems testing

Software and Device Verification Platform

TestWell software platform, script-based, one click start/stop, supporting new product development and component verification

Hydrogen and Electricity Synergy

Directed development capability based on power supply and load

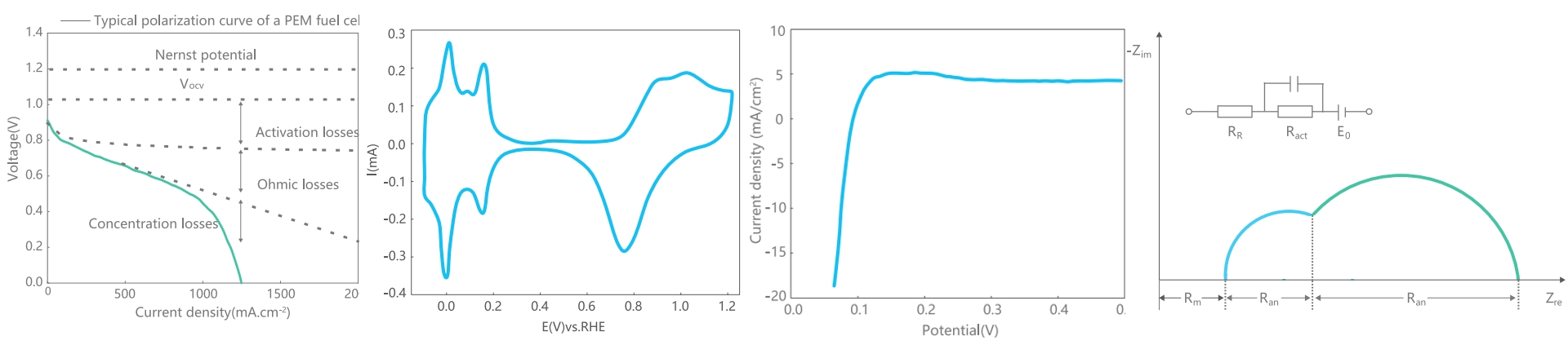

Electrochemical Testing

EIS test, stack-level electrochemical analysis

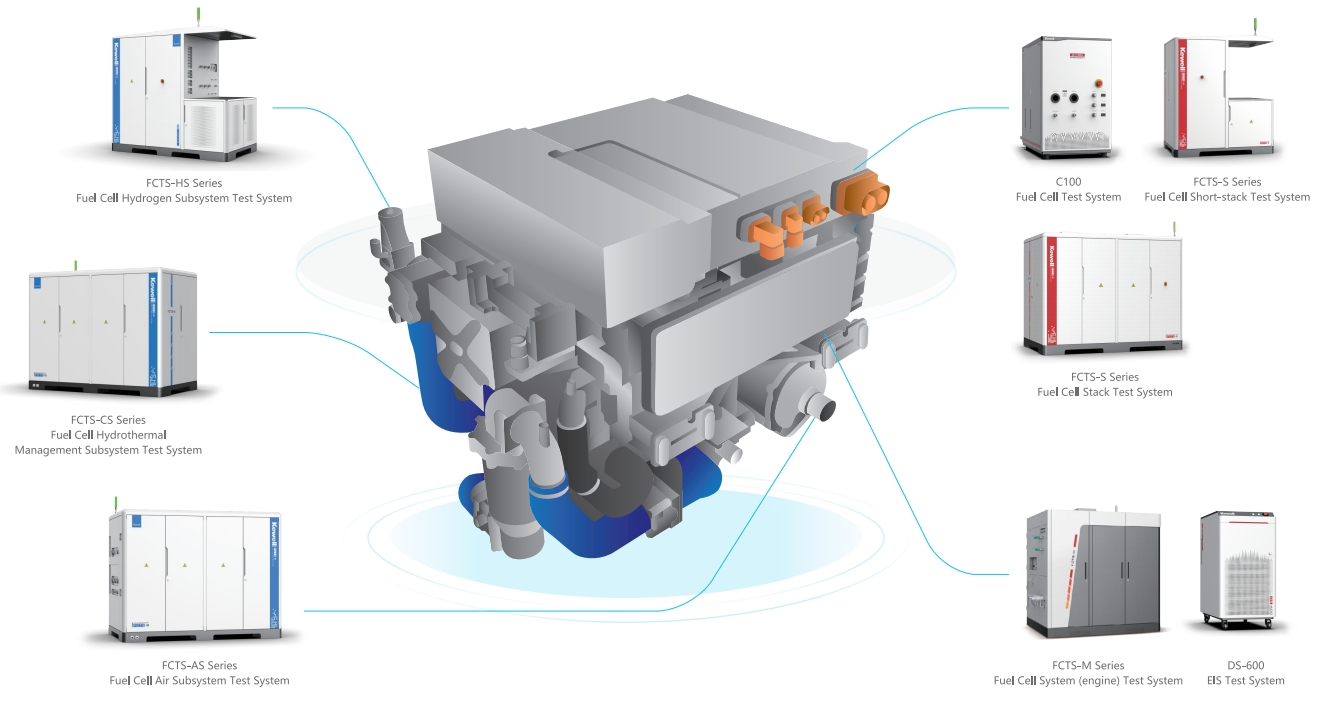

System Topology Diagram

SOLUTIONS

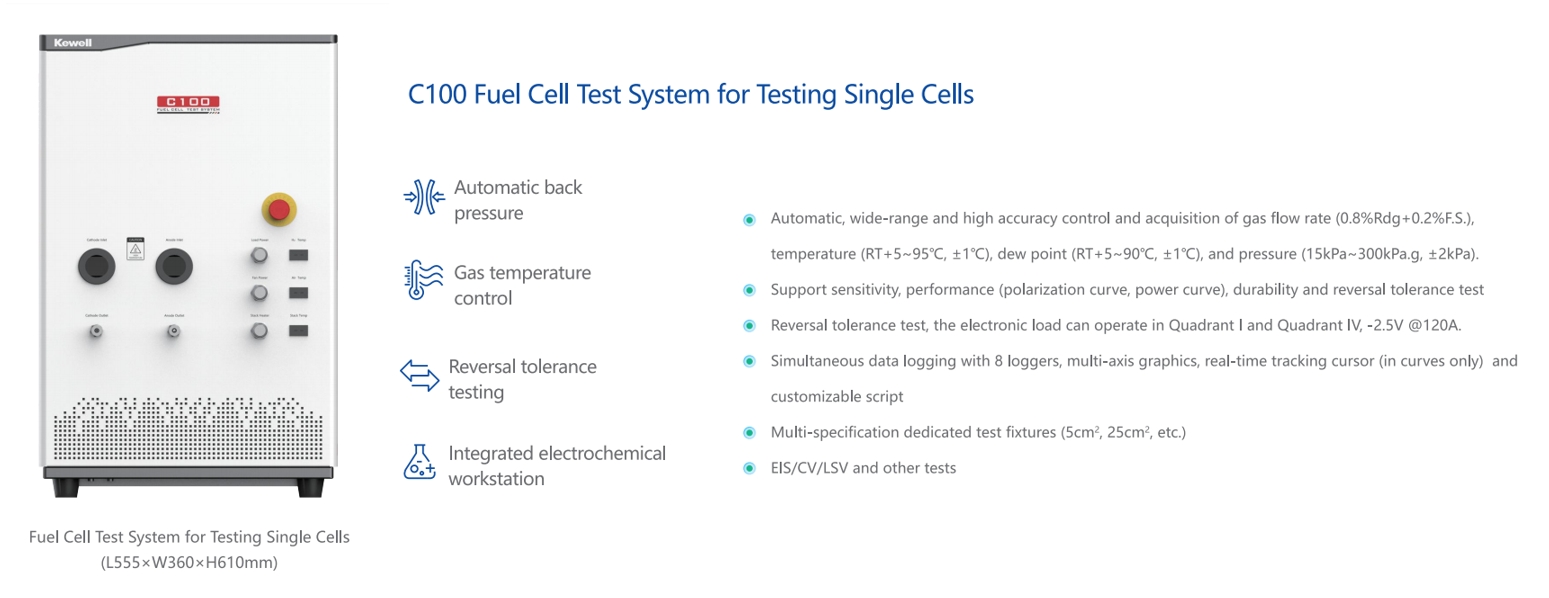

Fuel Cell Test System

The C100 fuel cell test system (for testing single-cells) is designed primarily to conduct durability, sensitivity, and electrochemical-related tests on materials such as Proton Exchange Membrane (PEM), Membrane Electrode Assembly(MEA), gas diffusion layers, and catalysts.

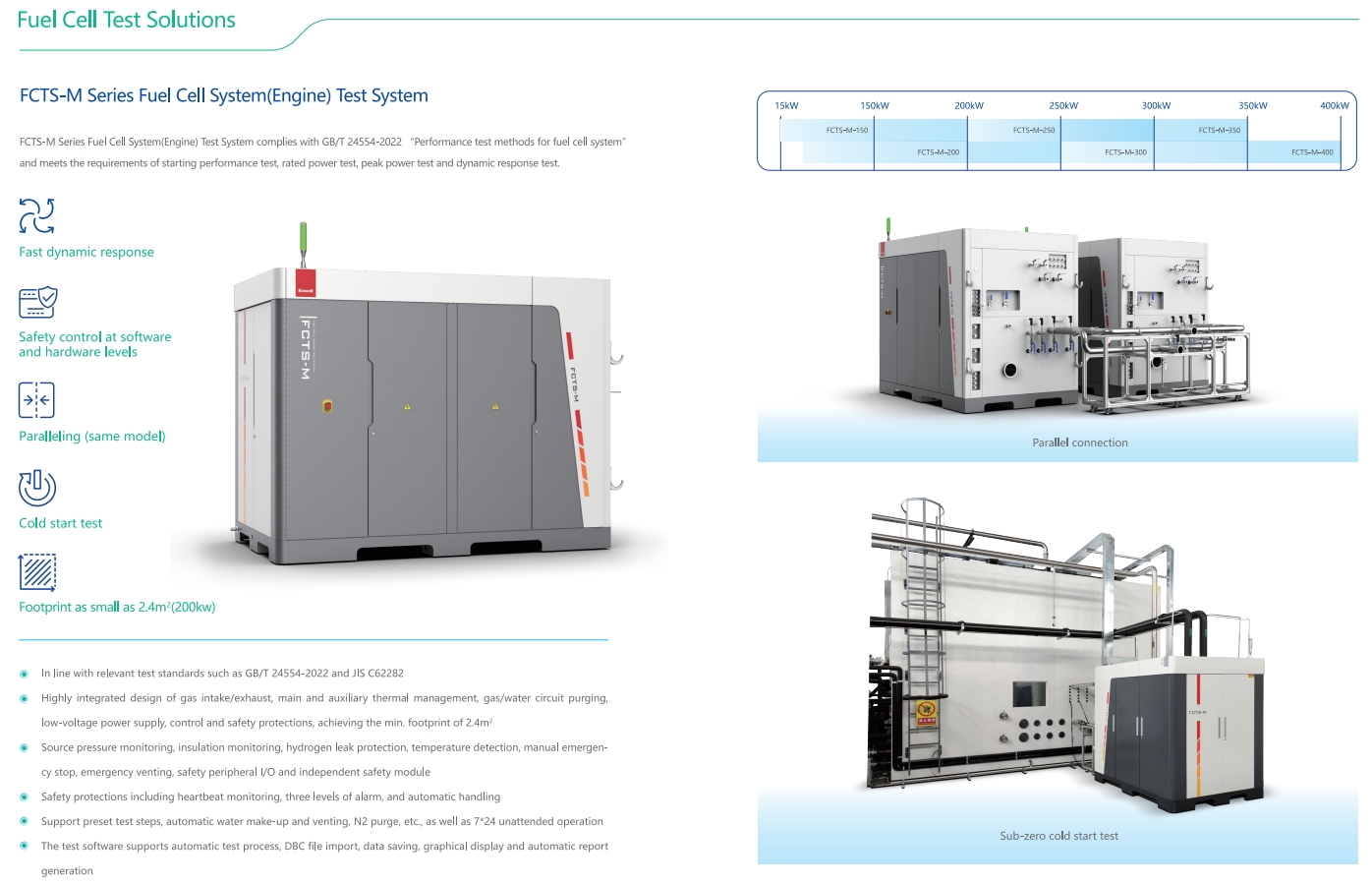

Fuel Cell System(Engine) Test Syetem

In the development and production process of fuel cell system(engine), it is necessary to test and evaluate the performance and durability. Kewell FCTS-M series fuel cell system(engine) test system can provide a relatively stable testing environment for fuel cell system. The rated power range of FCTS-M series fuel cell system test system is 150kW-400kW. In addition, it supports the relevant testing requirements of Chinese GB/T 24554-2022 and Japanese JIS C62282 for fuel cell system test.
