KEWELL TECHNOLOGY CO.,LTD.

Electrolyzer Test Solutions

To better serve the R&D and design, EOL testing and third-party verification of electrolyzers, and to ensure their efficiency, safety and service life, Kewell has introduced targeted test solutions for electrolyzer performance, reliability and durability.

Technical Advantages

Complete Product Portfolio

Covering single-cell testing of PEM/ALK/AEM electrolyzers and MW-level testing

Fast dynamics

Programmable power supply, rapid adjustment of temperature/pressure/flow

Rapid Sampling

Rapid sampling of gas at anode/cathode outlet of the electrolyzer

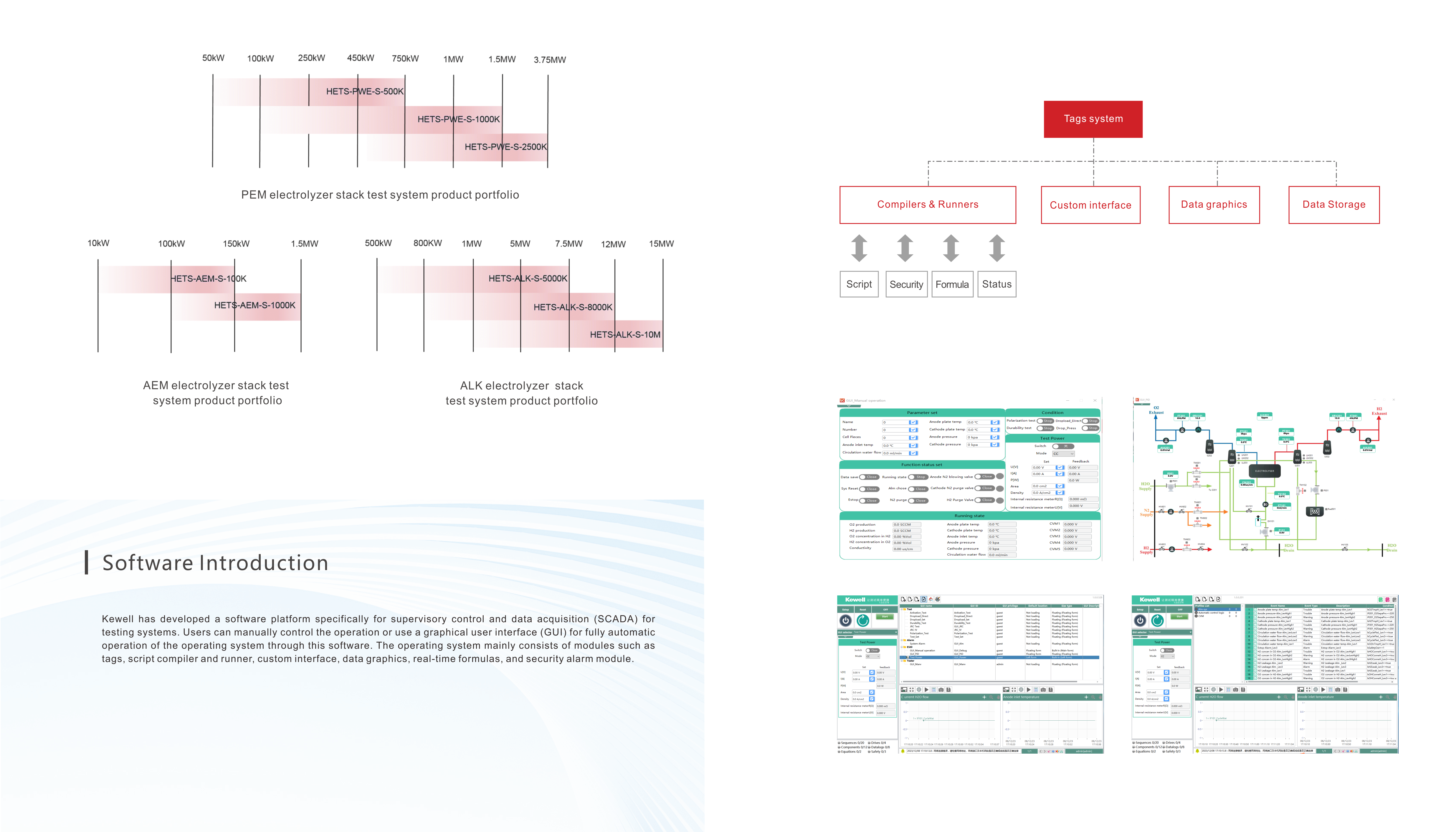

Software & Device Verification Platform

TestWell software platform, script-based, one click start/stop

System Topology Diagram

SOLUTIONS

Electrolyzer Test System

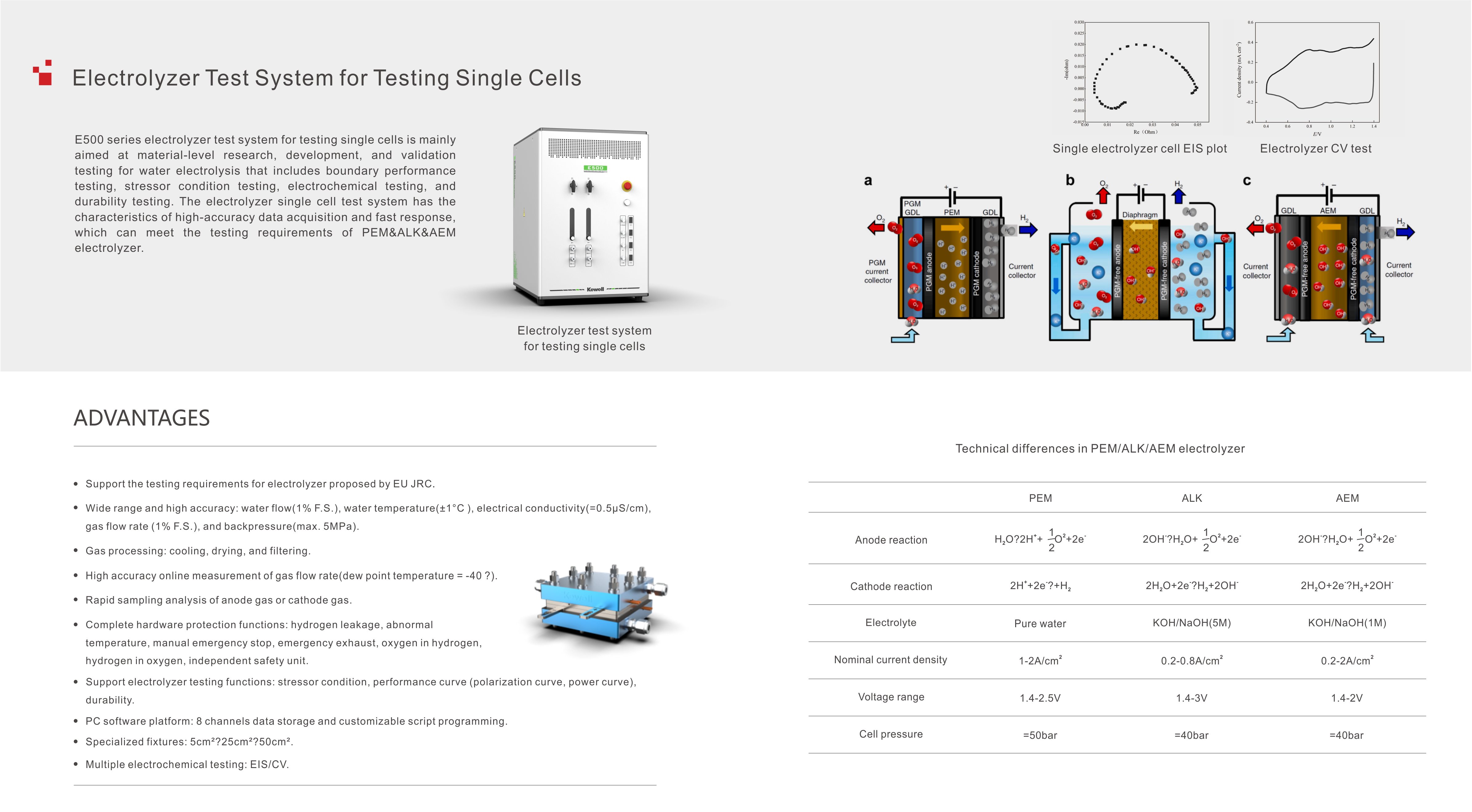

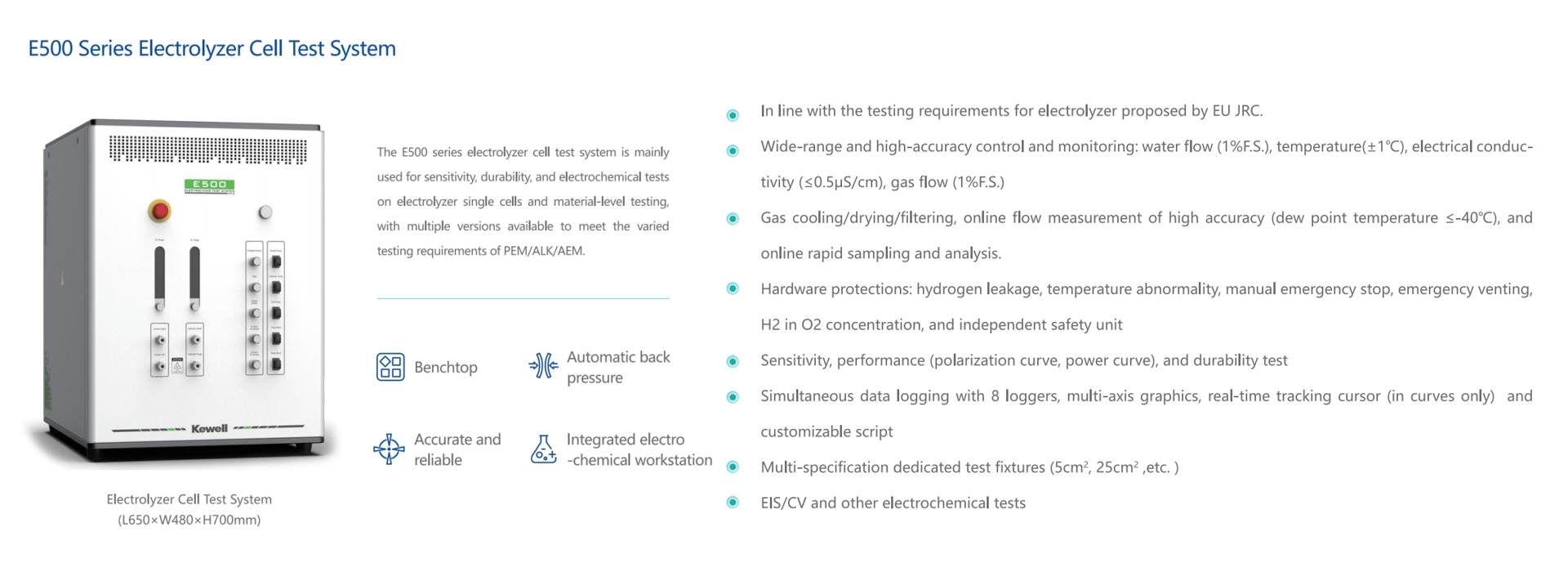

E500 series electrolyzer test system for testing single cells is mainly aimed at material-level research, development, and validation testing for water electrolysis that includes boundary performance testing, stressor condition testing, electrochemical testing, and durability testing. The electrolyzer single cell test system has the characteristics of high-accuracy data acquisition and fast response, which can meet the testing requirements of PEM&ALK&AEM electrolyzer.
